Dimensions:

• Height: 12.53 inches

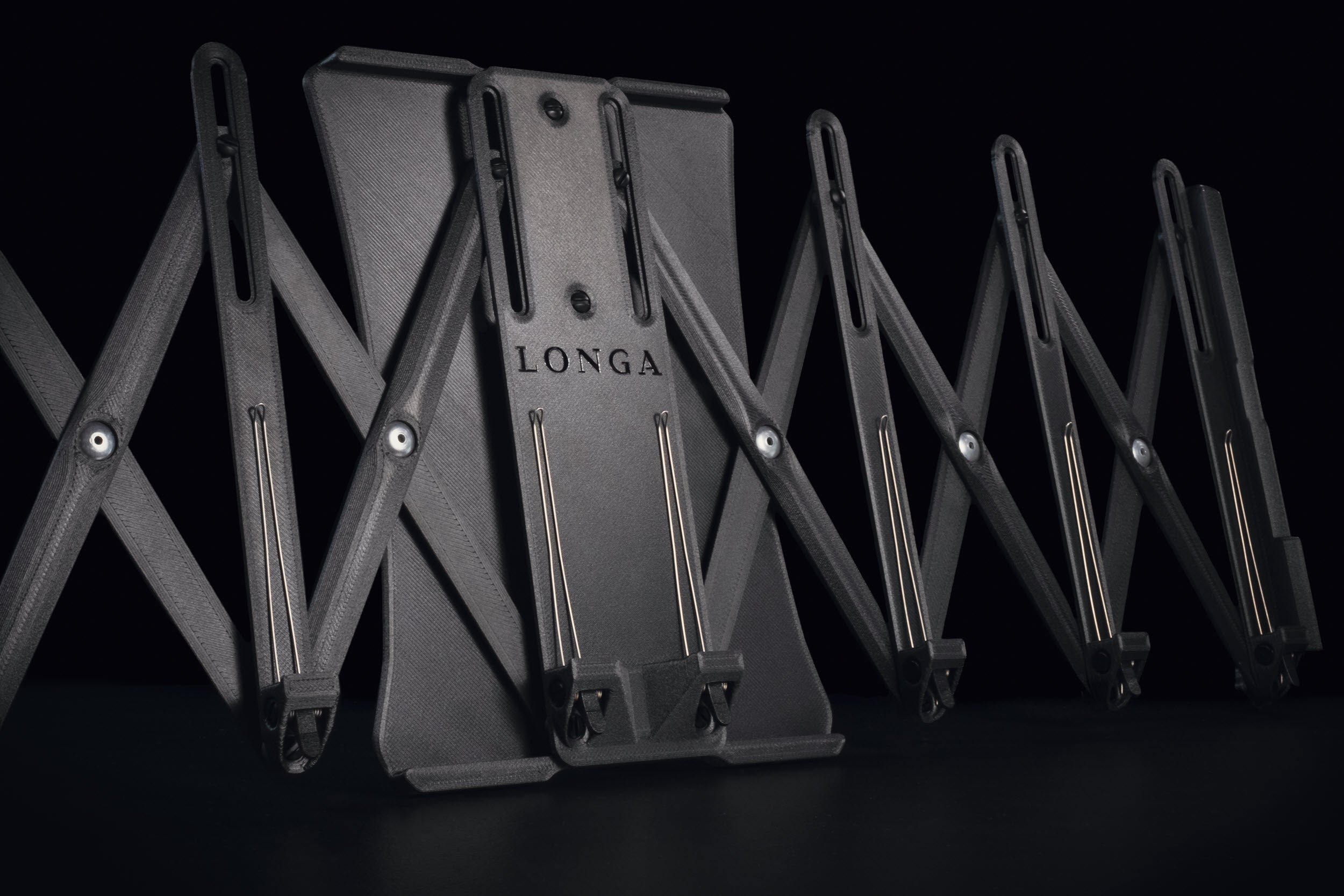

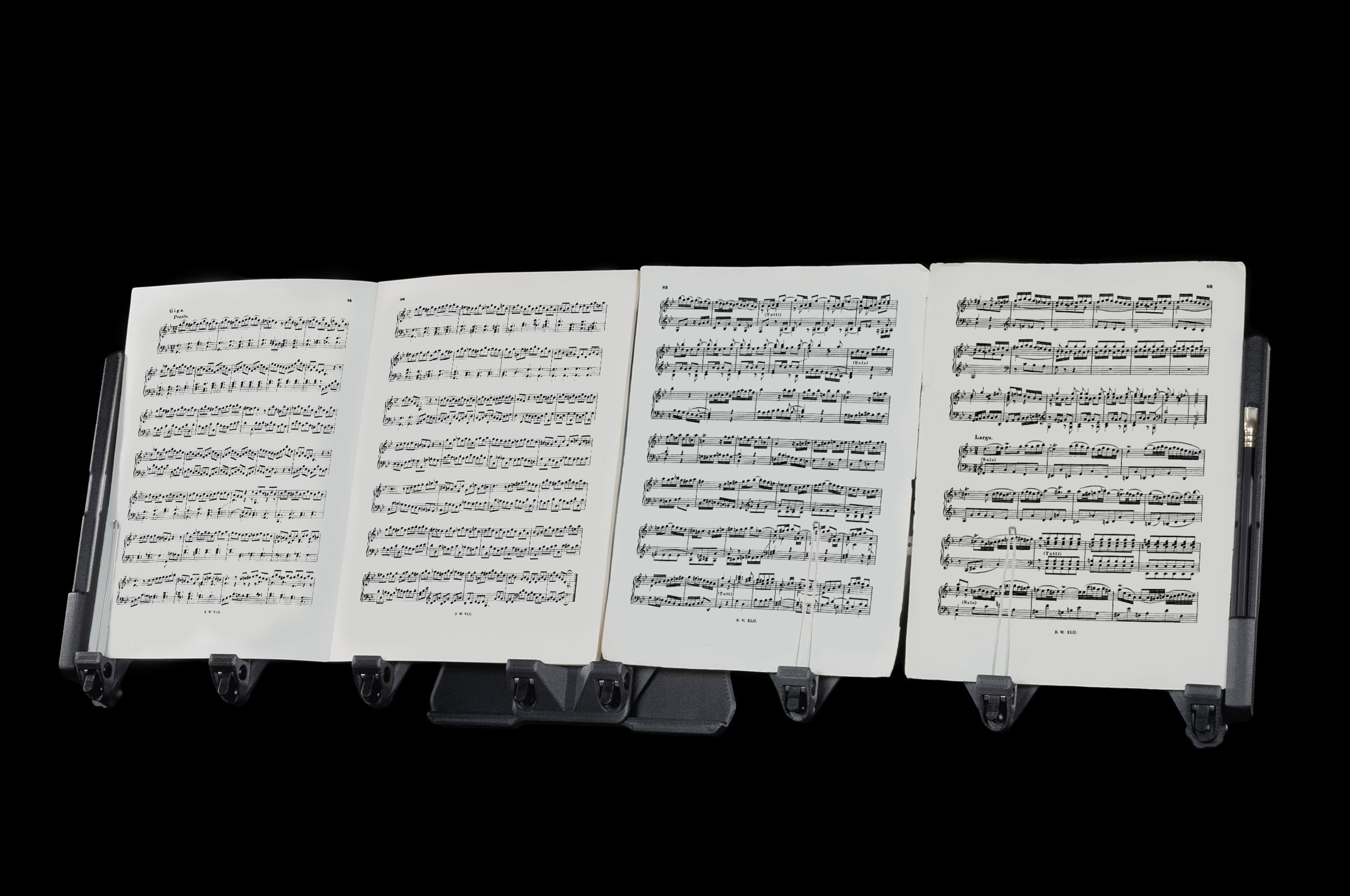

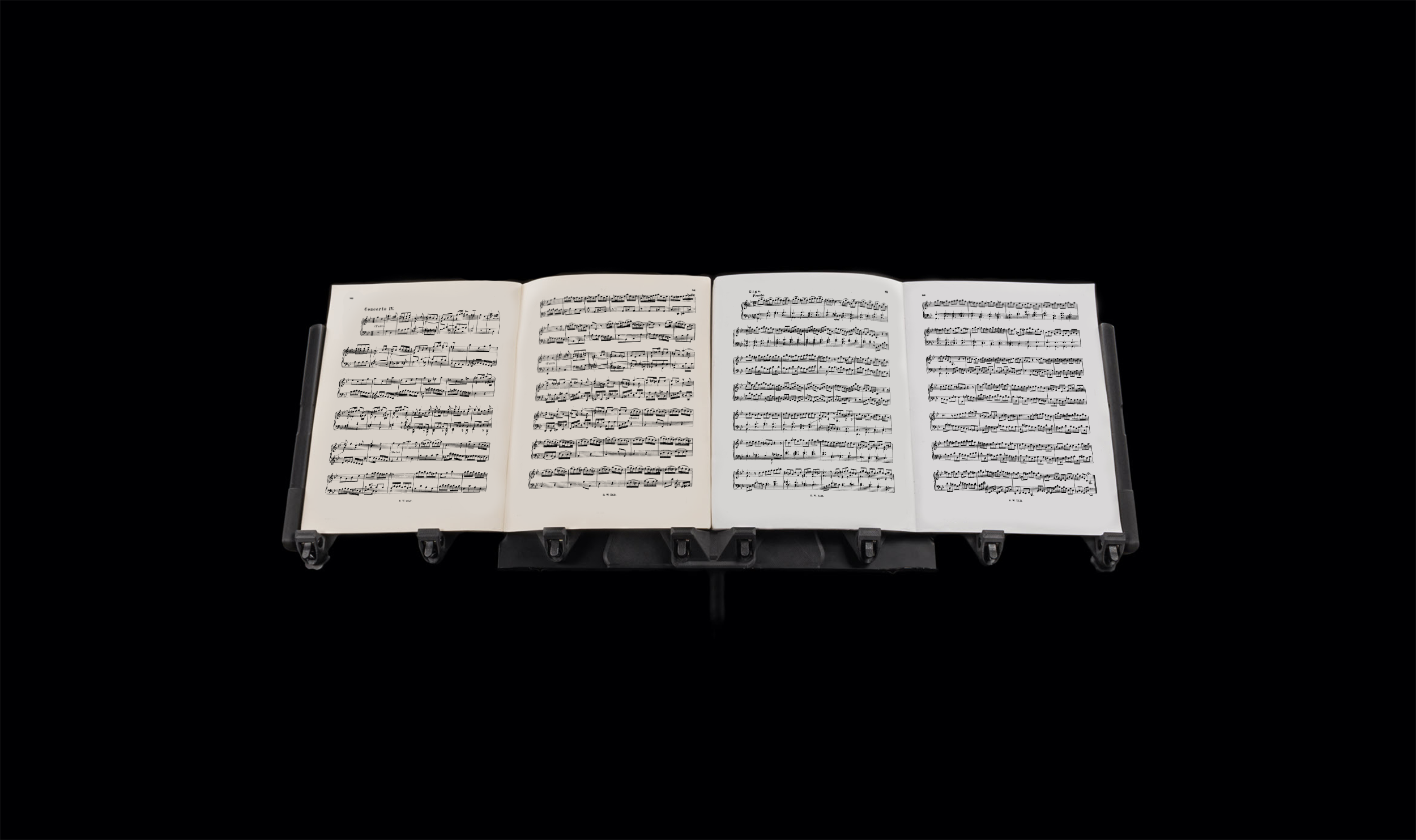

• Width: Closed: 10.89 inches - Fully Extended: 55.37 inches

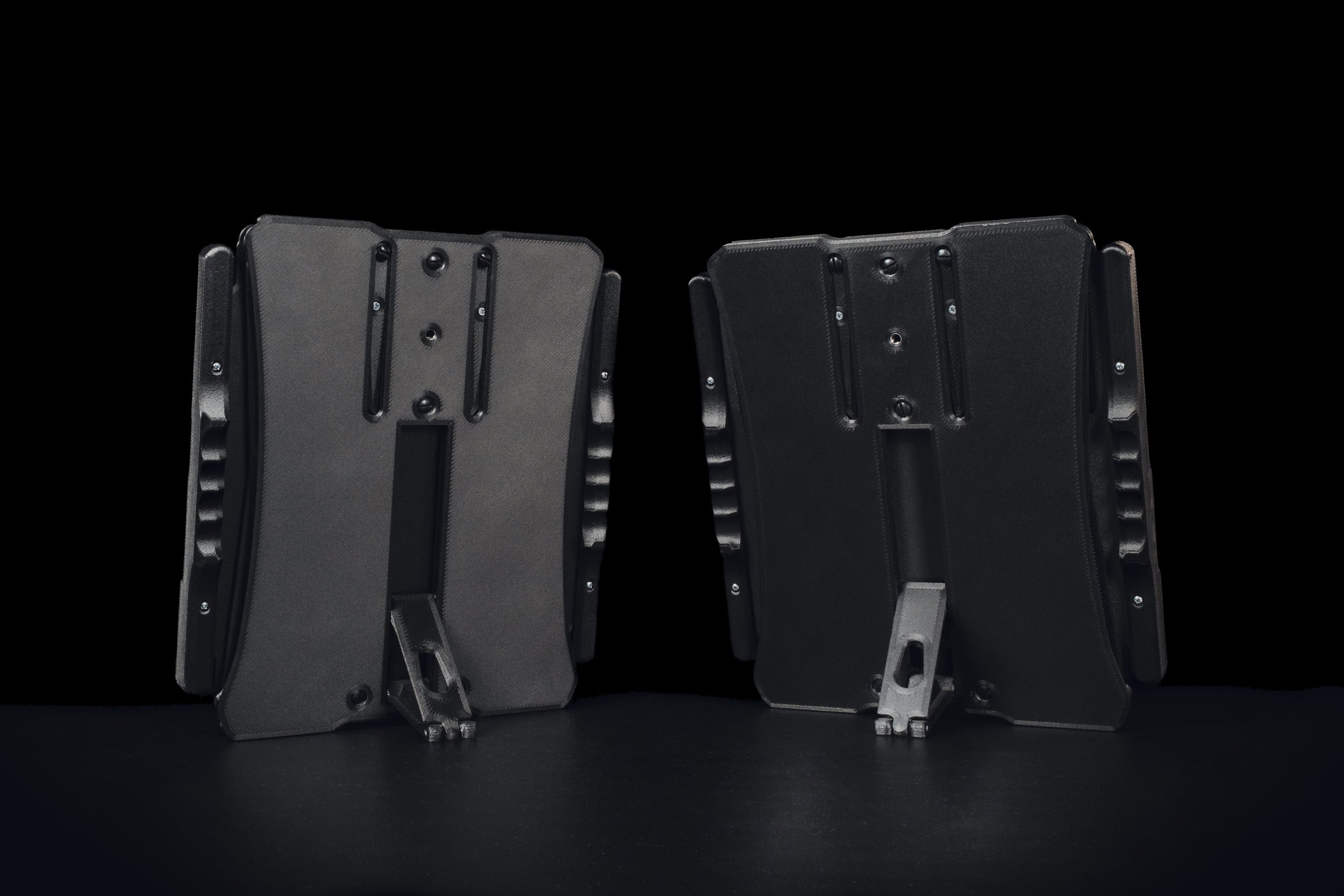

• Depth: Kickstand closed: 1.45 inches - Kickstand deployed: 4.17 inches

Weight:

• 2.89 pounds (1310 grams)

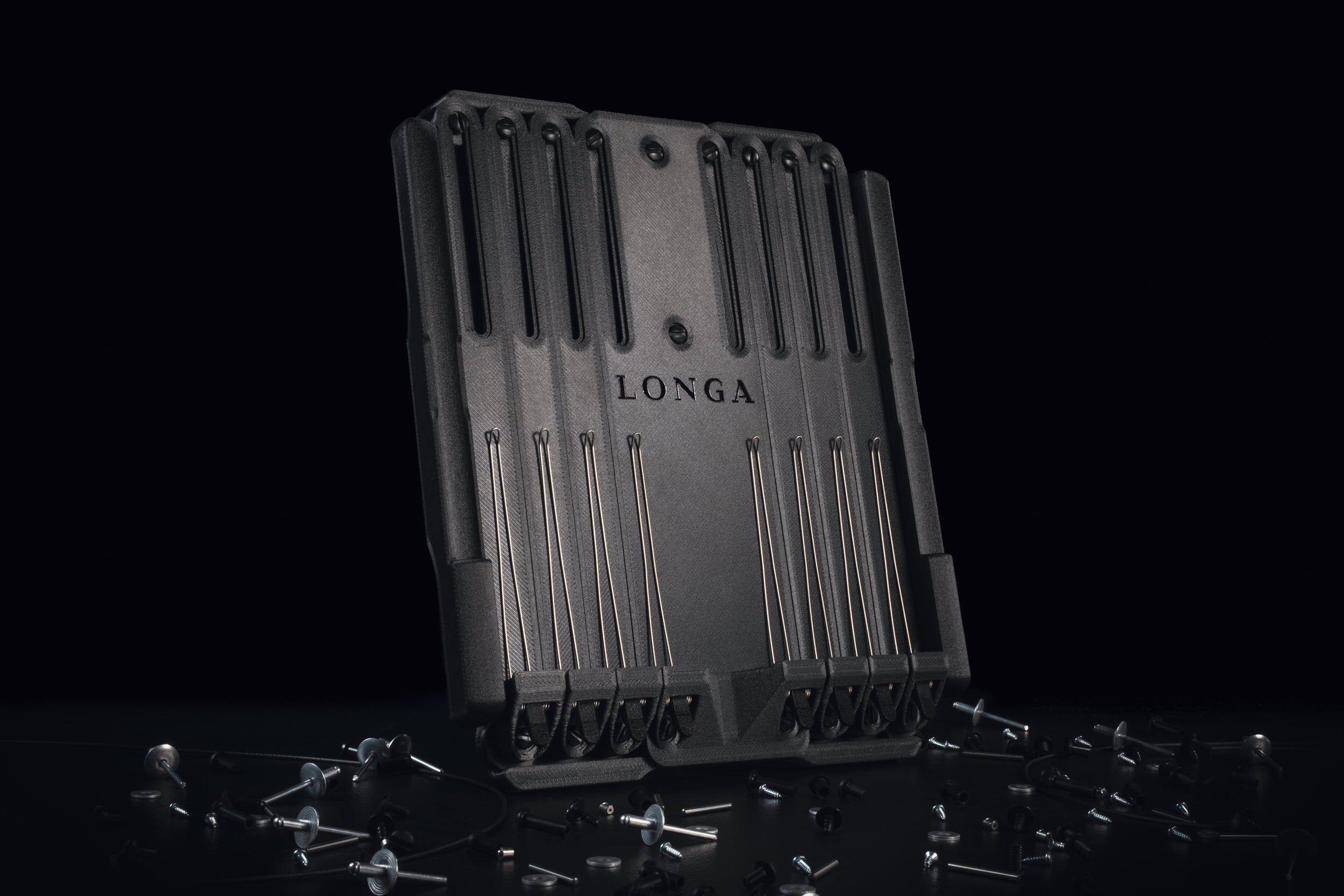

Materials & Construction:

• Plates, Grips, Arms, Spacers, Kickstand: 3D printed with carbon fiber reinforced thermoplastic
• Extension Pivots: Aluminum rivets
• Kickstand Pins: Stainless steel pins
• Fasteners and Slides: Injection molded plastic barrel screws

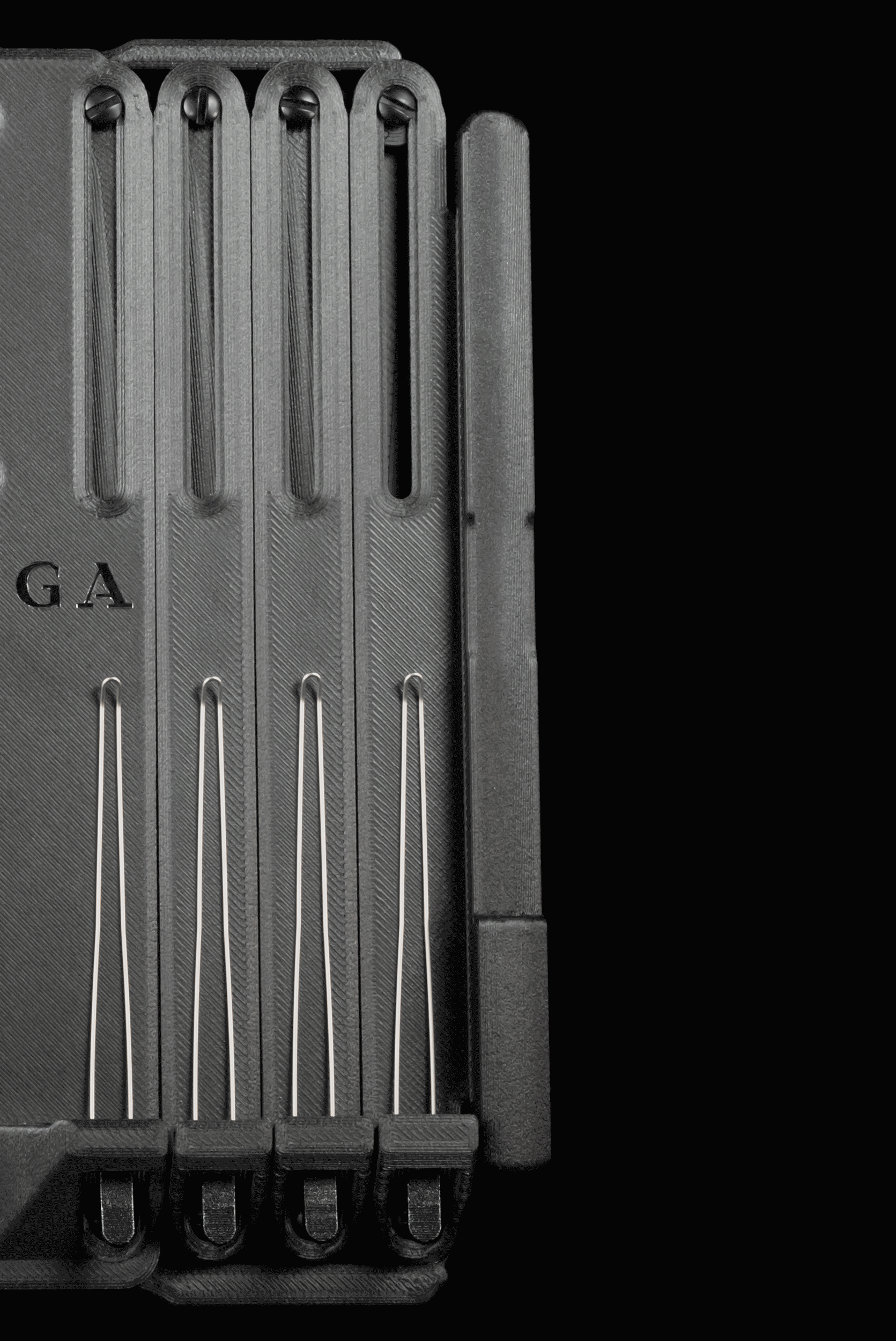

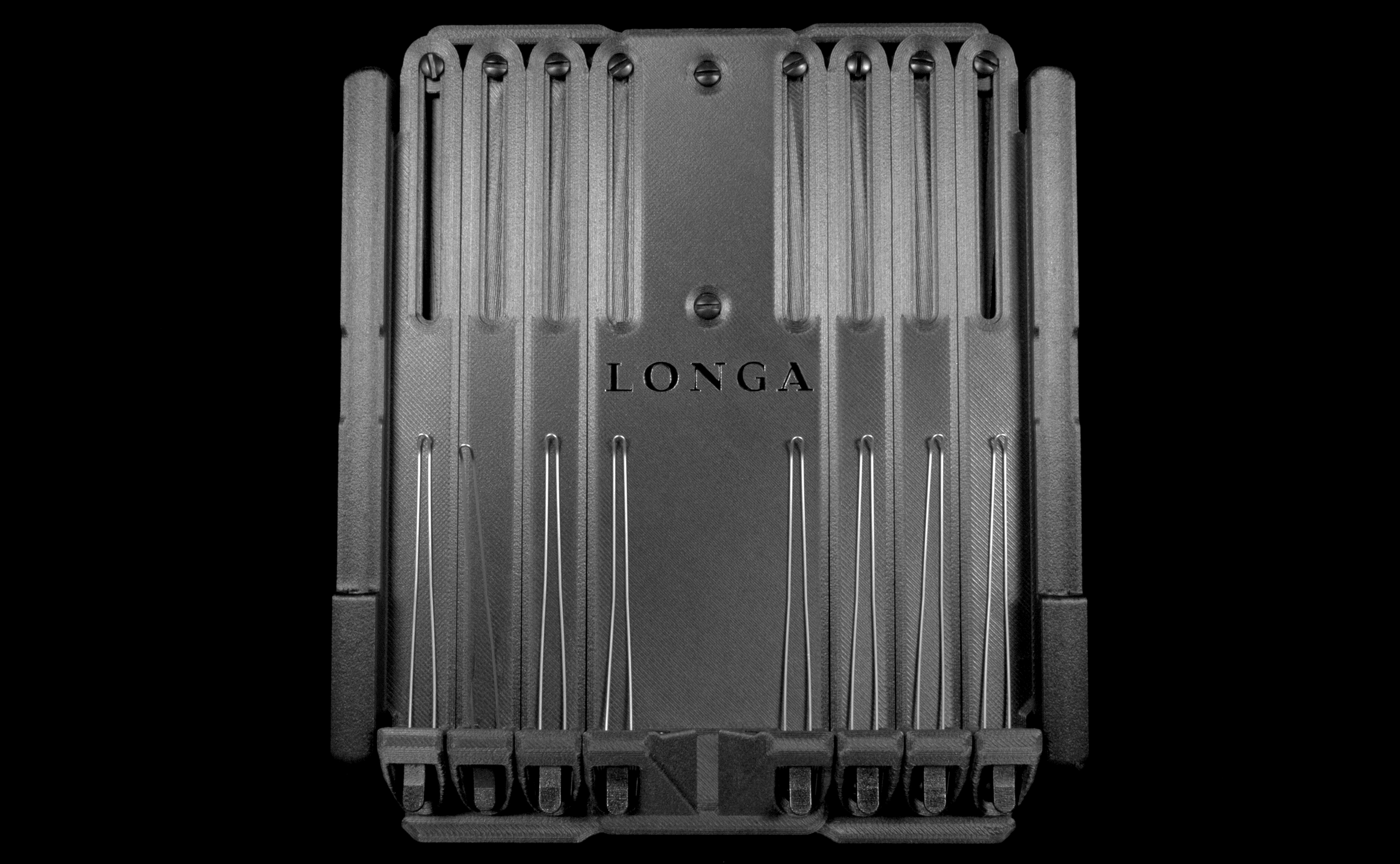

• Clips: 3D printed tough resin and UV resistant coating
• Springs: Stainless steel
• Rubber Feet: Polyurethane rubber
• 1/4“-20 Threaded Insert: Steel

Additional Information:

• 3D printed parts will exhibit visible layer lines, a natural outcome of the additive manufacturing process.
• To learn more about our manufacturing process, check out our YouTube and Instagram channels.

Made in the USA

• For smooth operation, clean and lubricate slides if needed. Use provided supplies and clean excess lubricant to prevent grime buildup.
• Do not over flex the arms. Keep balance in mind to avoid tipping when unsupported.
• Beware of moving parts. When operating the arms or kickstand, ensure your hands and fingers stay on the grips and in the finger slot to avoid pinching.

Operating Ambient Temperature:

• 32 to 120 degrees F (0 to 50 degrees C)

Material Handling:

• Thermoplastics may react to temperature extremes: Heat: May soften if above operating ambient temperature. Cold: May become brittle if below operating ambient temperature.
• If exposed to temperatures outside the recommended range, place LONGA on a flat surface (back plate and kickstand facing down) and allow to equalize to room temperature before use.

Thermal Properties:

• Thermoplastics used in this product have a heat deflection temperature of 170 degrees F (77 degrees C) at a stress of 0.45 MPa (66 psi).

Note:
To maintain the integrity and longevity of your LONGA music stand, please adhere to the specified environmental conditions.
